熟料輸送機

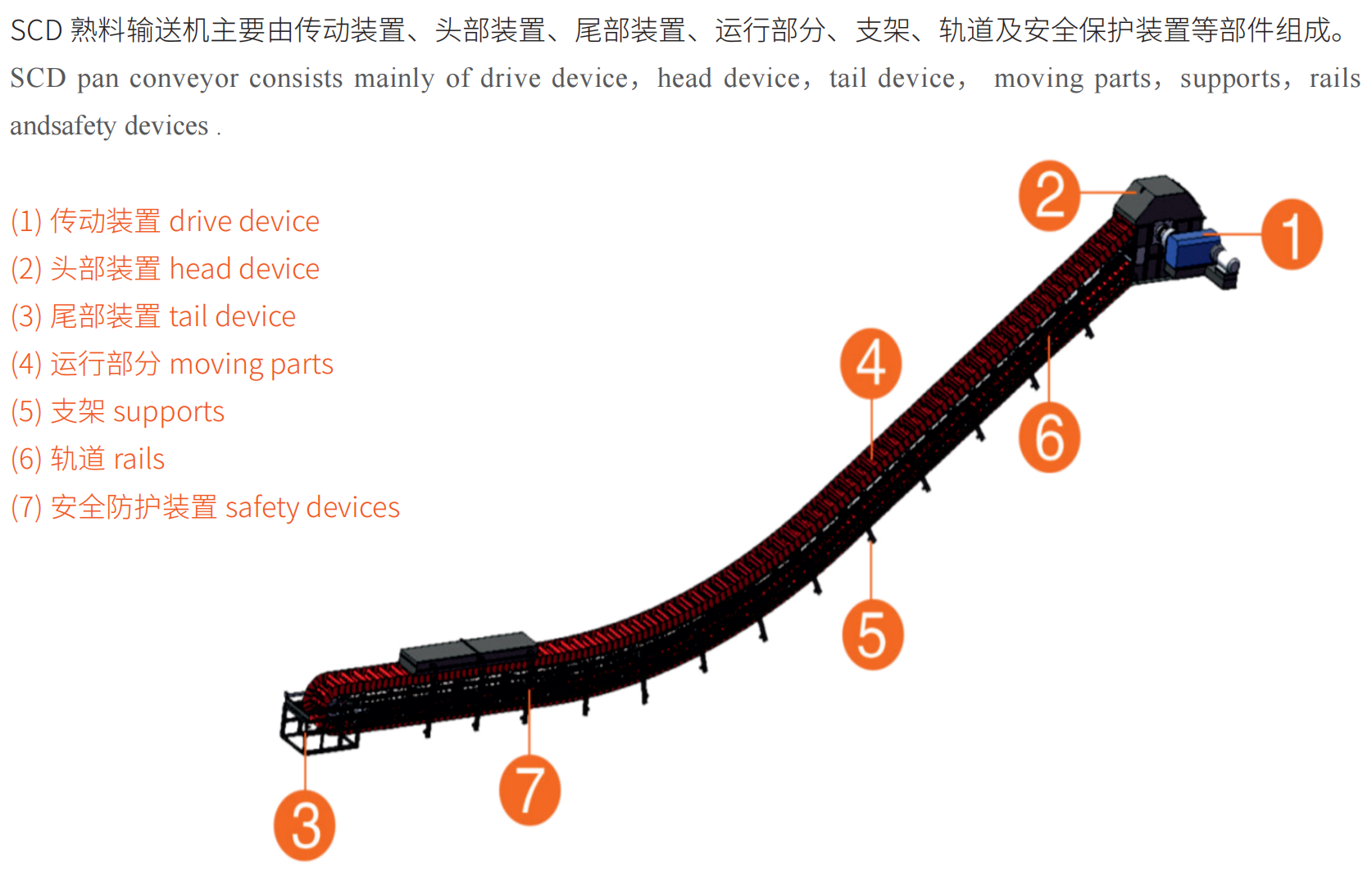

熟料輸送機結構特點
采用了合理可靠(kao)的結(jie)構設計和先(xian)進(jin)工藝流程，動載荷小(xiao)（與齒數的平方(fang)成反比）、受(shou)力小(xiao)、磨損小(xiao)，運行平穩， 使用壽命長，可靠性(xing)好，所有運(yun)行(xing)部件運(yun)行(xing)效(xiao)果達到最佳，極(ji)大(da)提(ti)高了使用壽命，同時與其它國(guo)產設(she)備相比能耗(hao)大大降低，可以為用戶節約大量電耗(hao)。
SINOMA-TCDRI pan conveyors feature a rational and reliable structure as well as an advanced process. It has characteristic of small dynamic load (it is inversely proportional to the square of the number of gears), small force, little wear and steady running, long service life and reliable operation. All the moving parts are in best condition which extends service life.
●頭部輪(lun)軸(zhou)組采(cai)用(yong)雙楔塊定位(wei)，安裝調節更(geng)簡單。
The head sprocket group use double wedge positioning, installation and adjustment become easier.
●鏈輪分體式(shi)設(she)計，鏈輪磨損只需更換齒圈。
The sprocket split design, just replace the gear ring when the sprocket wear.
●齒(chi)圈(quan)分成多(duo)片，更換(huan)齒(chi)塊(kuai)更容易(yi)。
Gear ring divided into multiple pieces so that gear block can replace easier.
●齒(chi)圈(quan)為雙切齒(chi)，鏈輪轉動(dong)兩圈(quan)每個(ge)齒(chi)才嚙合一次，使用壽命更長。
Gear ring is double tangent teeth，when the sprocket turns two circles, every teeth only joggles once. It can
have a longer using life.
●齒圈通過連(lian)接脹套與輪轂聯(lian)接，可(ke)增加聯(lian)接處的(de)抗剪截(jie)面，提高(gao)抗剪切力及聯(lian)接螺栓的(de)使用壽命。
Gear ring connected by the expansion sets and hub, it can increase shear-section of the connection, and improve the shear strength and life time of connecting bolt.
產品特點
●輸送量大，可(ke)達 1100t/h。
Large conveying capacity，up to 1100t/h.
●可水平和傾斜輸送，輸送角度(du)大。
It can be conveyed horizontally and obliquely，and the conveying angle is large.
●輸(shu)送高度達 70 多米，輸(shu)送距離可達 200m。
The conveying height can reach more than 70 meters and the conveying distance can reach 200 meters.
●承載與牽引分開，鏈條(tiao)只起牽引作用。
The load-bearing and traction of the equipment are separated, and the chain only plays a role of traction.
●配(pei)置(zhi)靈活，可根據使用工況選用鍛鏈與板(ban)鏈，料槽與料斗。
Flexible configuration and can choose forging chain or plate chain, bucket or hopper according to the working
conditions.
●驅(qu)動(dong)裝置(zhi)有(you)多種(zhong)布置(zhi)形式。
Driving device has different arrangement.
●自主(zhu)研發適用(yong)于(yu) 450℃ -- 600℃高(gao)溫物(wu)料(liao)的熱料(liao)輸送機(ji)。
Special hot material conveyor is suitable for 450 ℃ - 600 ℃ high temperature materials.

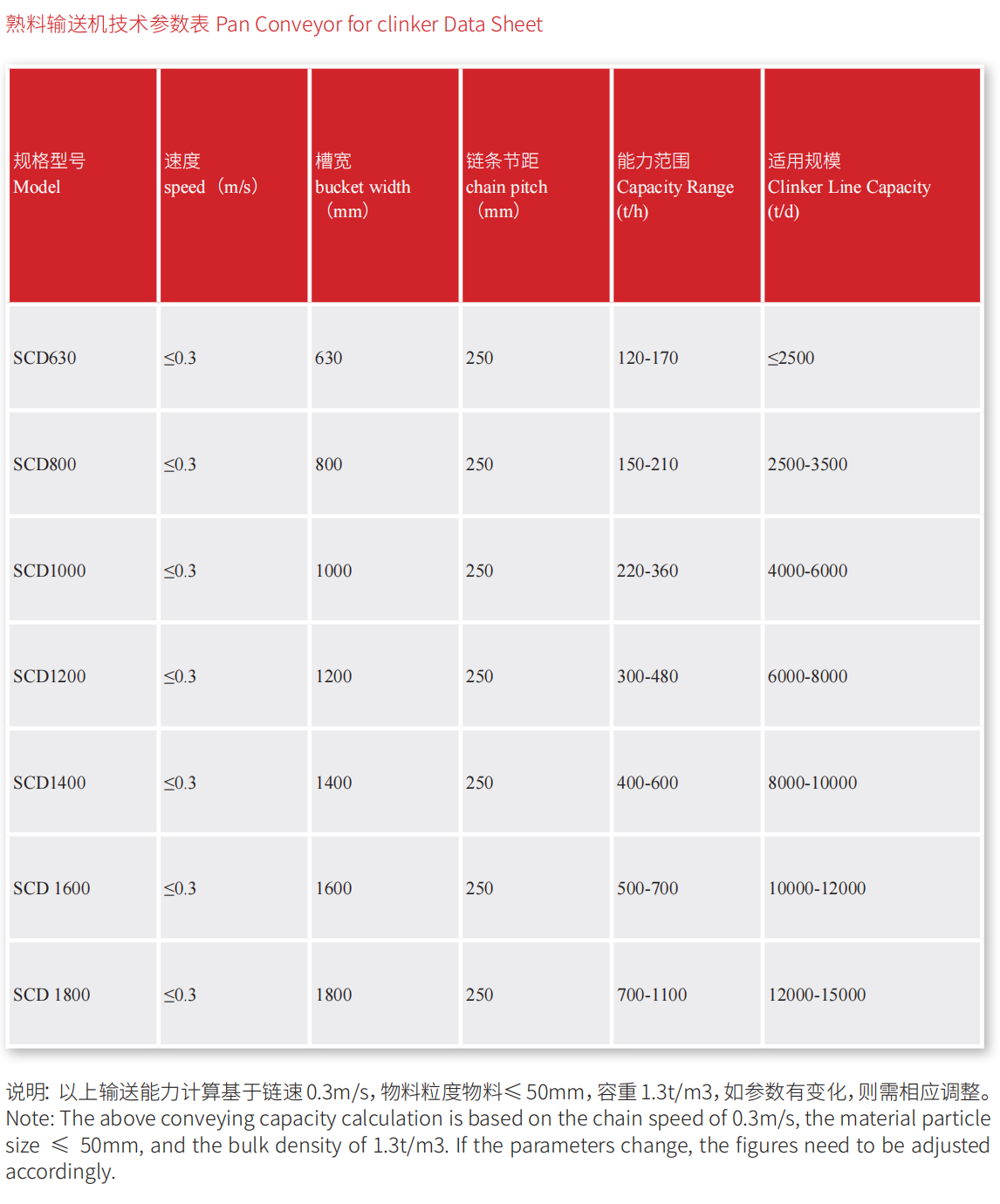

技術參數
